| الـ MOQ: | 1 |
| السعر: | Customized |
| التعبئة القياسية: | Plywood Case |
| فترة التسليم: | 30 Days |
| طريقة الدفع او السداد: | T/T |
| القدرة على التوريد: | 20 sets per month |
| Attribute | Value |
|---|---|
| Impact Energy | 2J -20J |
| IK Rating | IK07-IK10 |
| Lifting Method | motor-driven, 200–1200 mm |
| Release Method | Electromagnetic |
| Hammer Material | Steel |
| Key Function | Anti-secondary impact |
This test apparatus conforms to IEC60068-2-75:2014, IEC60598-1:2017, EC62262:2002, and other relevant standards. It is designed to evaluate the impact resistance of household and similar electrical/electronic products and their components, including plugs, sockets, wall-mounted junction boxes, cable glands, covers, switches, and lighting fixtures. It assesses both the safety performance and structural durability of these products.

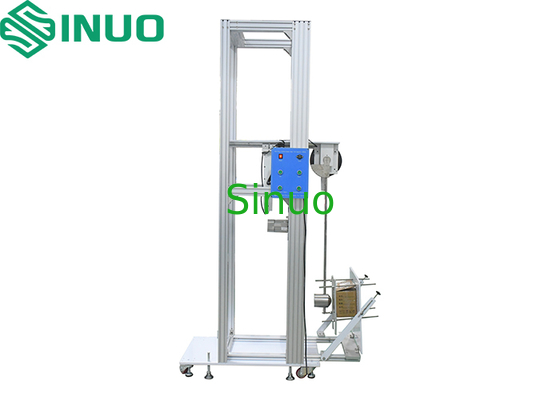

The striking element is freely released from a predetermined height along a 1-meter pendulum tube. At the lowest point of its swing, it impacts the specimen vertically, converting gravitational potential energy into kinetic energy to perform the impact test.
| Parameter | Specification |
|---|---|
| Striking Elements (Energy/J) | Optional: 2J, 5J, 10J, 20J, 50J (corresponding to IK07, IK08, IK09, IK10 respectively) |
| Equivalent Mass kg | 500g, 1.7kg, 5 kg, 5 kg (for 2J, 5J, 10J, 20J respectively) |
| Striking Elements Material | Steel |
| Pendulum Tube | Steel pipe: 1000 mm length, 15.9 mm outer diameter, 1.5 mm wall thickness |
| Impact Point | Electrically adjustable height, stroke range: 200-1200 mm |
| Height of Fall | 0-500mm, scale display |
| Lifting | Electrical mode, motor-driven |
| Impact element release method | Electromagnetic |
| Base plate | Thicken load-bearing steel base plate |
| Way of moving | Equipped with casters; movable to align with the sample's impact point |
| Anti-secondary impact function | Yes |
