| الـ MOQ: | 1 |
| السعر: | قابل للتفاوض |
| التعبئة القياسية: | صندوق الكرتون |
| فترة التسليم: | 10 أيام |
| طريقة الدفع او السداد: | ر/ر |
| القدرة على التوريد: | 100 جهاز كمبيوتر في الشهر |

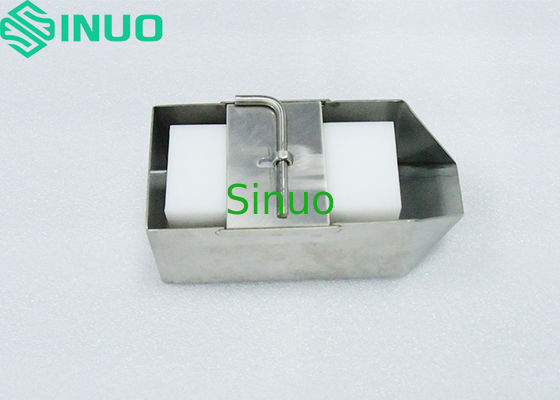

The spillage test apparatus is designed to validate the electrical safety of refrigerating appliances in compliance with international standards including IEC 60335-2-15, IEC 60335-2-24, IEC 60335-2-14, IEC 60335-2-25, and IEC 60335-2-89.
Compatible with refrigerating appliances including:
This apparatus tests refrigerating appliances to ensure spillage of liquids from containers onto cabinet walls or tops does not compromise electrical insulation integrity.
| Component | Specification |
|---|---|
| Stainless steel container dimensions | 155×70×60mm |
| Displacement block dimensions | 112×50×25mm |
| Displacement block weight | 200g±10g |
| Spillage port size | 30mm |
| Height from spillage port to bottom | 30mm |
| Release method | Manual |
